Leaked DJI Mic 2 specs and images!

January 16, 2024
rumors
0 Comments

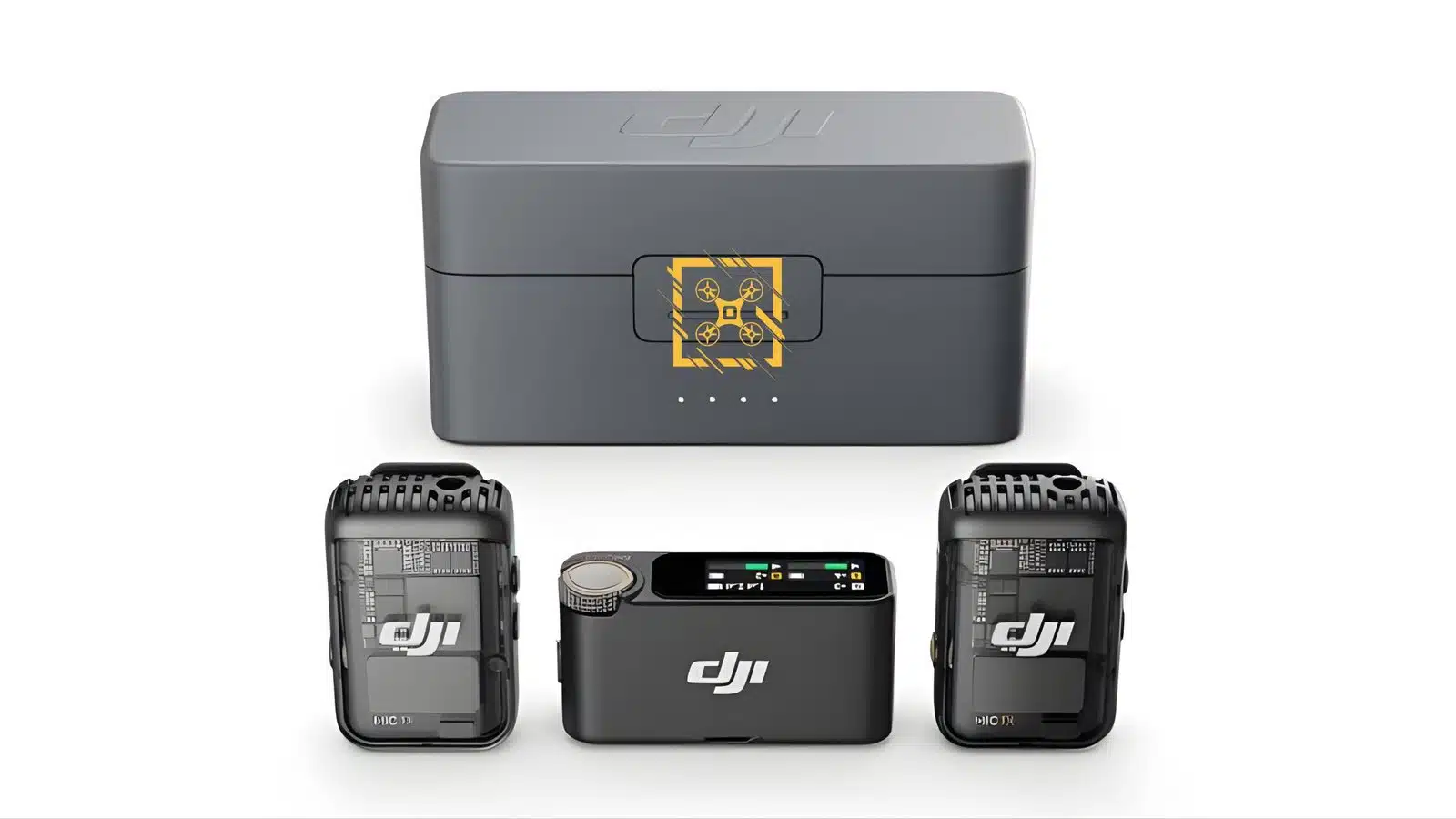

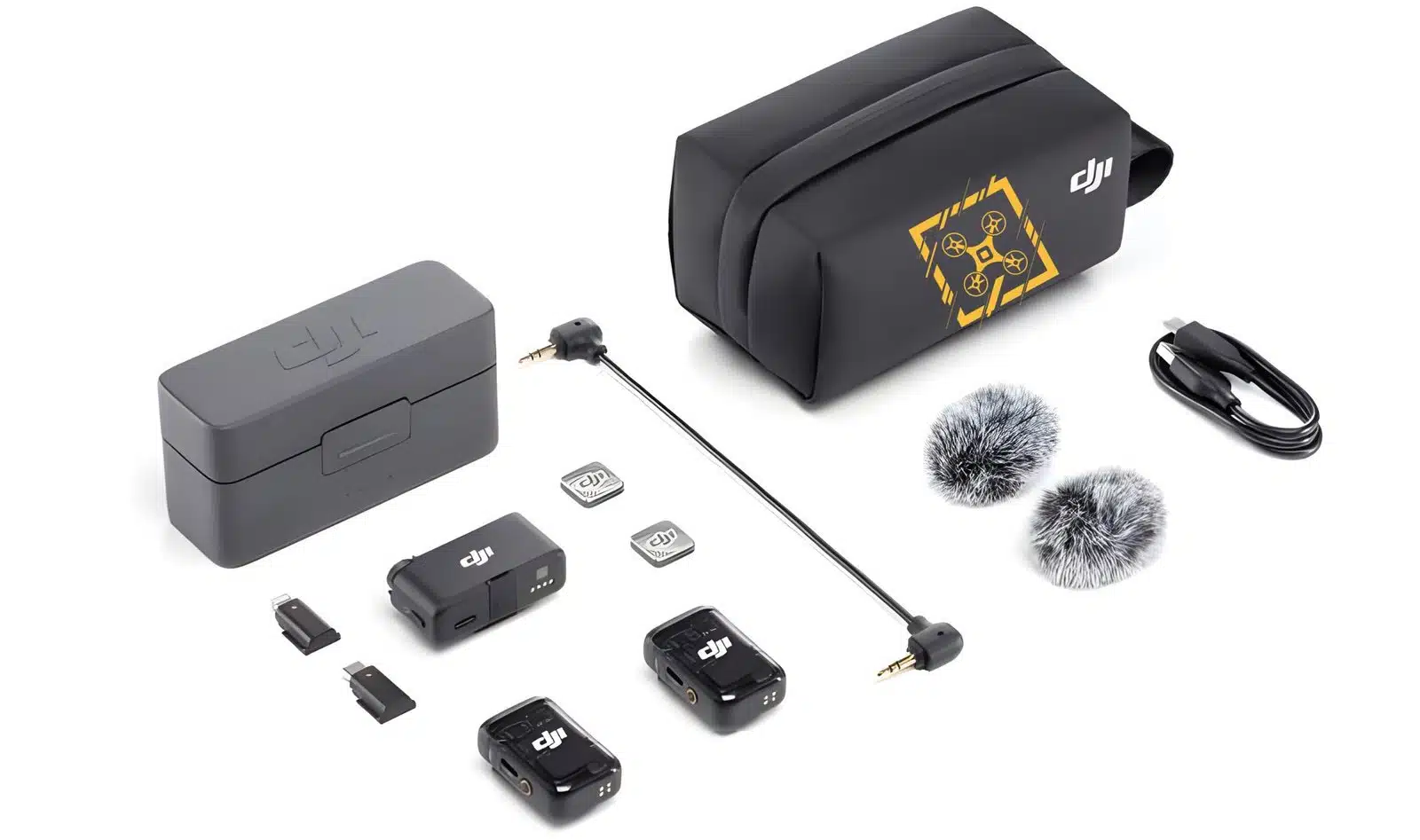

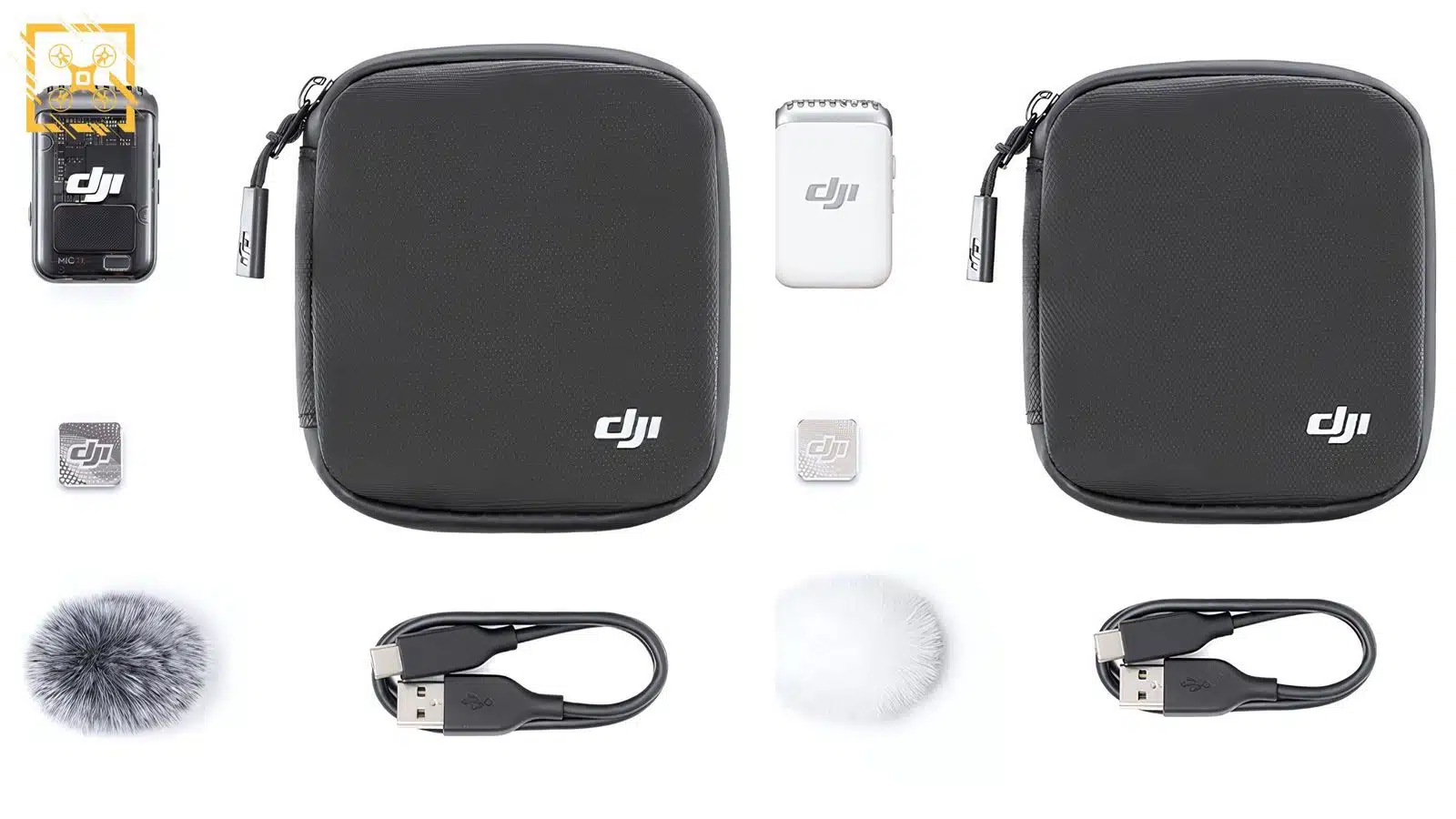

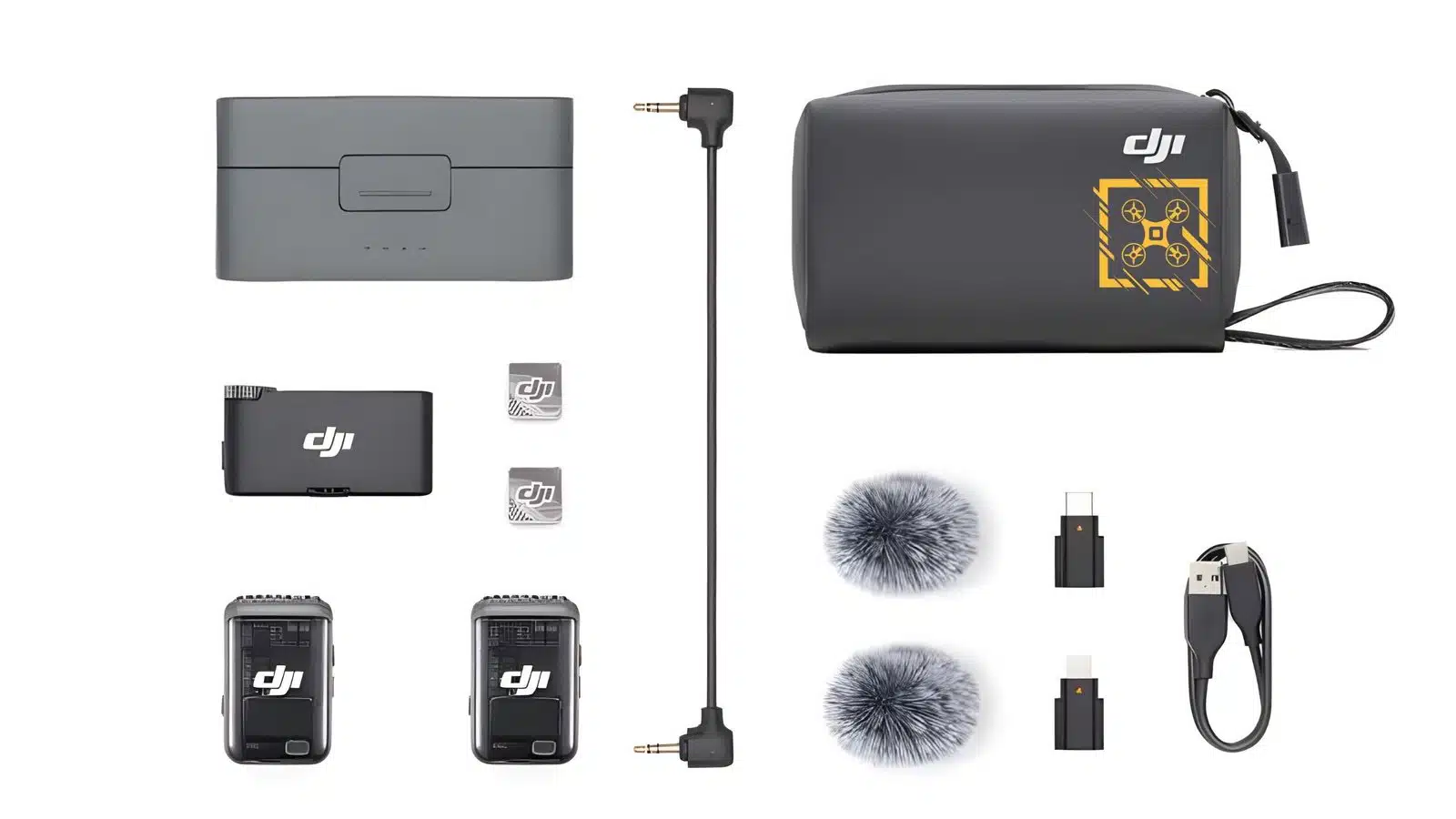

Tomorrow (Jan 17) Dji will announce the new Mic 2. I am current owner of the first generation DJI MIC so I am curious to see how good the new ones will be! Here are new leaked images and full specs:

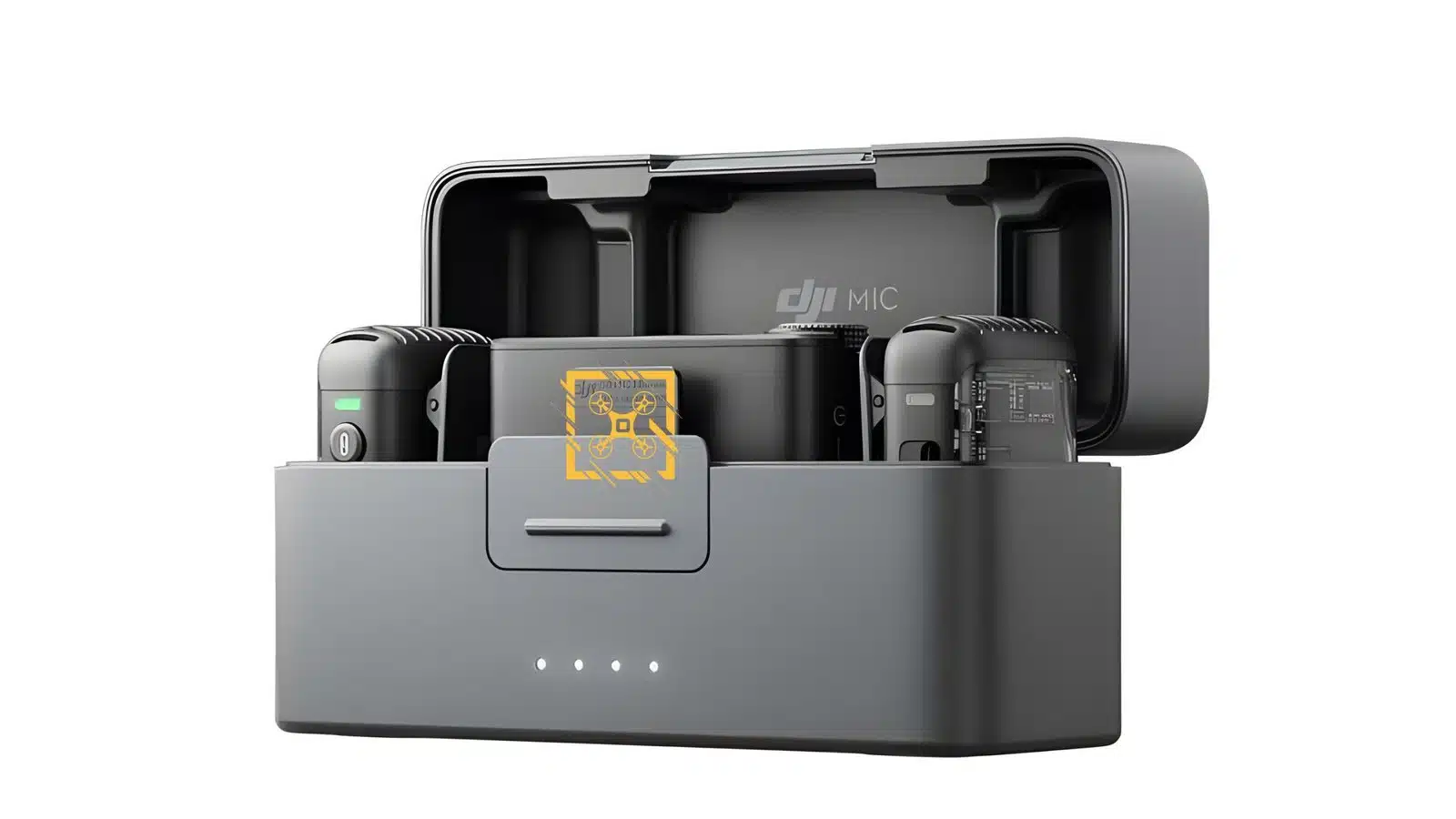

DJI Mic 2 Charging Case

Dimensions: 116×41.5×59.72 mm (L×W×H)
Weight: 200 g
Battery Type: 18650 Li-ion
Battery Capacity: 3250 mAh
Battery Energy: 11.7 Wh
Battery Voltage: 3.6 V
Charging Specification: 5 V, 1.5-3 A
Charging Temperature : 5° to 40° C (41° to 104° F)
Operating Temperature : 5° to 45° C (41° to 113° F)
Charging Time: 2 hours and 40 mins
Charging Cycles for TX and RX
Approx. two cycles when charging two TXs and one RX at the same time

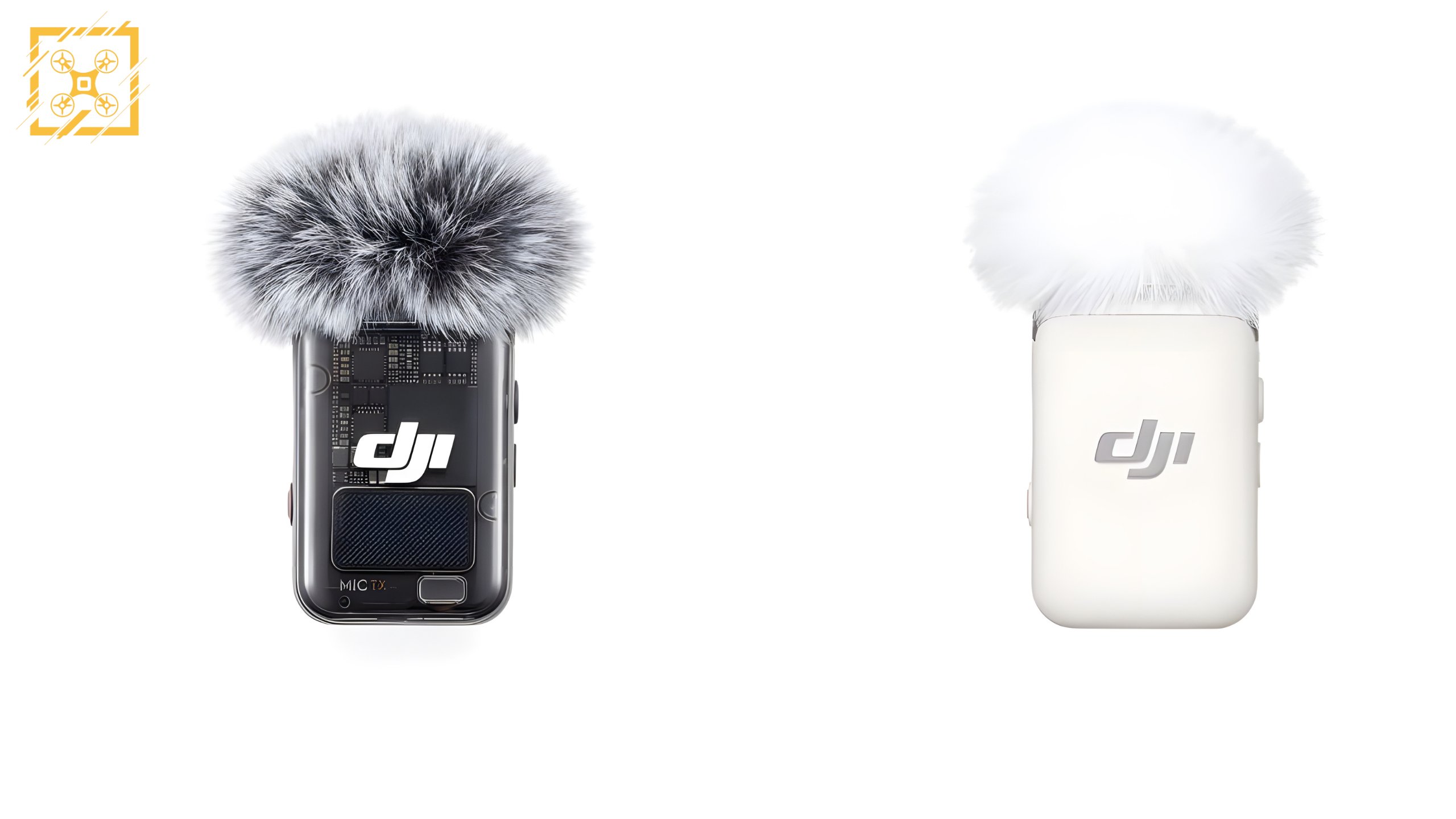

DJI Mic 2 Transmitter

Dimensions: 46.06×30.96×21.83 mm (LW×H)
Weight: 28 g
Wireless Mode: GFSK 1 Mbps and 2 Mbps
Equivalent Isotropic Radiated Power (EIRP) : Wireless Mode Operating Frequency: 2.400-2.4835 GHz
Bluetooth Protocol: BR/EDR
Bluetooth Operating Frequency: 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP) :
Battery Type : Li-ion
Battery Capacity: 360 mAh
Battery Energy: 1.39 Wh
Battery Voltage: 3.87 V
Charging Temperature: 5° to 45° C (41° to 113° F)
Operating Temperature: -10° to 45° C (14° to 113° F)
Charging Time: 70 mins
Operating Time: 6 hours

DJI Mic 2 Receiver

Dimensions: 54.20×28.36×22.49 mm (LW×H)
Weight: 28 g
Wireless Mode: GFSK 1 Mbps and 2Mbps
Equivalent Isotropic Radiated Power (EIRP) :
Operating Frequency: 2.400-2.4835 GHz
Battery Type : Li-ion
Battery Capacity: 360 mAh
Battery Energy : 1.39 Wh
Battery Voltage: 3.87 V
Charging Temperature: 5° to 45° C (41° to 113° F)
Operating Temperature: -10° to 45° C (14° to 113° F)
Charging Time: 70 mins
Operating Time: 6 hours

Polar Pattern : Omnidirectional
Frequency Response:
- Low Cut Off: 50 Hz – 20 kHz
- Low Cut On: 100 Hz – 20 kHz
Max Sound Pressure Level (SPL) : 120 dB SPL
Equivalent Noise : 21 dBA
Monitor Interface Output Power: Max Output 12 mW@1 kHz, 32 0
Max Transmission Distance : 250 m (FCC), 160 m (CE)

via DroneXL
